Example: Circular arrows with text

Published 2014-07-29 | Author: Tom Bombadil

This example was written by Tom Bombadil answering a question on TeX.SE, with a modification by Stefan Kottwitz adding a text font style showing an implicit way.

Download as: [PDF] [TEX]  •  [Open in Overleaf]

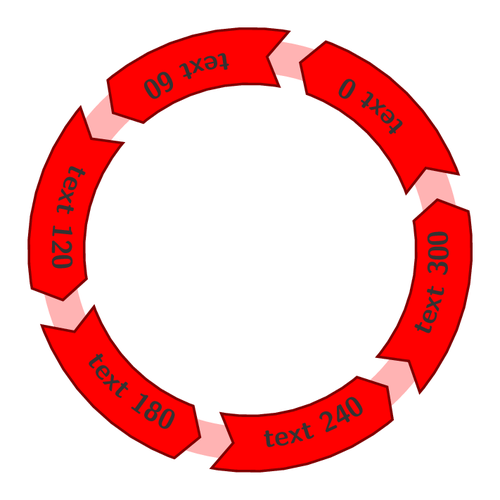

Circular arrows with text

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de. En français: TeXnique.fr.

% Circular arrows with text
% Author: Tom Bombadil
\documentclass[tikz,border=10pt]{standalone}
\usetikzlibrary{decorations.text}
\newcommand*{\mytextstyle}{\sffamily\Large\bfseries\color{black!85}}
\newcommand{\arcarrow}[8]{%
% inner radius, middle radius, outer radius, start angle,
% end angle, tip protusion angle, options, text
  \pgfmathsetmacro{\rin}{#1}
  \pgfmathsetmacro{\rmid}{#2}
  \pgfmathsetmacro{\rout}{#3}
  \pgfmathsetmacro{\astart}{#4}
  \pgfmathsetmacro{\aend}{#5}
  \pgfmathsetmacro{\atip}{#6}
  \fill[#7] (\astart:\rin) arc (\astart:\aend:\rin)
       -- (\aend+\atip:\rmid) -- (\aend:\rout) arc (\aend:\astart:\rout)
       -- (\astart+\atip:\rmid) -- cycle;
  \path[font = \sffamily, decoration = {text along path, text = {|\mytextstyle|#8},
    text align = {align = center}, raise = -0.5ex}, decorate]
    (\astart+\atip:\rmid) arc (\astart+\atip:\aend+\atip:\rmid);
}

\begin{document}
\begin{tikzpicture}
  \fill[even odd rule,red!30] circle (3.8) circle (3.2);
  \foreach \x in {0,60,...,300} {
    \arcarrow{3}{3.5}{4}{\x+20}{\x+70}{5}{red,
      draw = red!50!black, very thick}{text \x}
  }
\end{tikzpicture}
\end{document}
