Example: Commutative diagram

Published 2012-02-26 | Author: Stefan Kottwitz

A simple example of a commutative diagram using TikZ, short and readable. It has been posted as answer to the question Commutative Diagrams and TikZ of Elias.

  • A matrix is used for positioning the main nodes
  • Arrows are drawn as edges, between the main nodes, using further nodes for labeling
  • As columns and row distance is expressed by em units, which scale with the font size, the diagram can be scaled by using font size commands such as Large, huge etc.

Note the (m-2-1.east|-m-2-2) syntax for getting a horizontal arrow between cells of a different height.

Download as: [PDF] [TEX]  •  [Open in Overleaf]

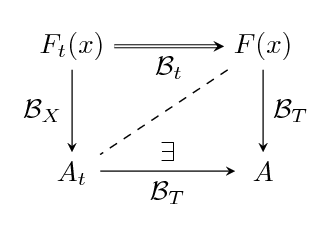

Commutative diagram

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de. En français: TeXnique.fr.

% A simple commutative diagram
% Stefan Kottwitz
\documentclass{article}
\usepackage{tikz}
\usetikzlibrary{matrix}
\begin{document}
\begin{tikzpicture}
  \matrix (m) [matrix of math nodes,row sep=3em,column sep=4em,minimum width=2em]
  {
     F_t(x) & F(x) \\
     A_t & A \\};
  \path[-stealth]
    (m-1-1) edge node [left] {$\mathcal{B}_X$} (m-2-1)
            edge [double] node [below] {$\mathcal{B}_t$} (m-1-2)
    (m-2-1.east|-m-2-2) edge node [below] {$\mathcal{B}_T$}
            node [above] {$\exists$} (m-2-2)
    (m-1-2) edge node [right] {$\mathcal{B}_T$} (m-2-2)
            edge [dashed,-] (m-2-1);
\end{tikzpicture}
\end{document}
