Red-black tree

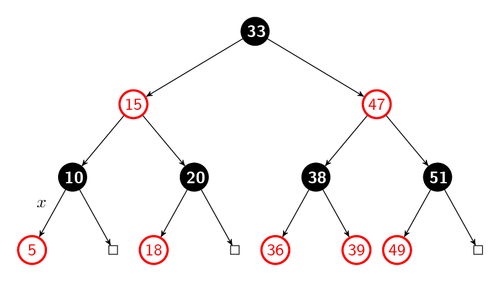

A red-black tree is a special type of binary tree, used in computer science to organize pieces of comparable data, such as text fragments or numbers. (Wikipedia)

Edit and compile if you like:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
% Red-black tree
% Author: Madit
\documentclass{article}
\usepackage{tikz}
\usepackage[active,tightpage]{preview}
\PreviewEnvironment{tikzpicture}
\setlength{\PreviewBorder}{10pt}%
\usetikzlibrary{arrows}
\tikzset{
  treenode/.style = {align=center, inner sep=0pt, text centered,
    font=\sffamily},
  arn_n/.style = {treenode, circle, white, font=\sffamily\bfseries, draw=black,
    fill=black, text width=1.5em},% arbre rouge noir, noeud noir
  arn_r/.style = {treenode, circle, red, draw=red,
    text width=1.5em, very thick},% arbre rouge noir, noeud rouge
  arn_x/.style = {treenode, rectangle, draw=black,
    minimum width=0.5em, minimum height=0.5em}% arbre rouge noir, nil
}
\begin{document}
\begin{tikzpicture}[->,>=stealth',level/.style={sibling distance = 5cm/#1,
  level distance = 1.5cm}]
\node [arn_n] {33}
    child{ node [arn_r] {15}
            child{ node [arn_n] {10}
                child{ node [arn_r] {5} edge from parent node[above left]
                         {$x$}} %for a named pointer
                            child{ node [arn_x] {}}
            }
            child{ node [arn_n] {20}
                            child{ node [arn_r] {18}}
                            child{ node [arn_x] {}}
            }
    }
    child{ node [arn_r] {47}
            child{ node [arn_n] {38}
                            child{ node [arn_r] {36}}
                            child{ node [arn_r] {39}}
            }
            child{ node [arn_n] {51}
