Example: Probability tree

Published 2006-12-14 | Author: Kjell Magne Fauske

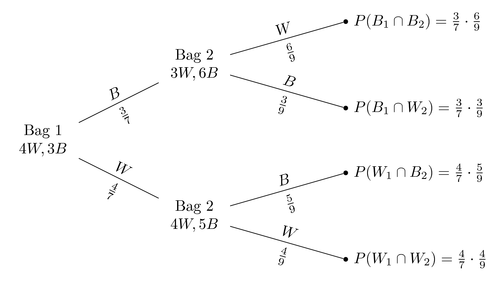

A simple example of a probability tree diagram.

Download as: [PDF] [TEX]

Probability tree

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de. En français: TeXnique.fr.

\documentclass{article}

\usepackage[latin1]{inputenc}
\usepackage{tikz}
\usetikzlibrary{trees}
\begin{document}
\pagestyle{empty}


% Set the overall layout of the tree
\tikzstyle{level 1}=[level distance=3.5cm, sibling distance=3.5cm]
\tikzstyle{level 2}=[level distance=3.5cm, sibling distance=2cm]

% Define styles for bags and leafs
\tikzstyle{bag} = [text width=4em, text centered]
\tikzstyle{end} = [circle, minimum width=3pt,fill, inner sep=0pt]

% The sloped option gives rotated edge labels. Personally
% I find sloped labels a bit difficult to read. Remove the sloped options
% to get horizontal labels.
\begin{tikzpicture}[grow=right, sloped]
\node[bag] {Bag 1 $4W, 3B$}
    child {
        node[bag] {Bag 2 $4W, 5B$}
            child {
                node[end, label=right:
                    {$P(W_1\cap W_2)=\frac{4}{7}\cdot\frac{4}{9}$}] {}
                edge from parent
                node[above] {$W$}
                node[below]  {$\frac{4}{9}$}
            }
            child {
                node[end, label=right:
                    {$P(W_1\cap B_2)=\frac{4}{7}\cdot\frac{5}{9}$}] {}
                edge from parent
                node[above] {$B$}
                node[below]  {$\frac{5}{9}$}
            }
            edge from parent
            node[above] {$W$}
            node[below]  {$\frac{4}{7}$}
    }
    child {
        node[bag] {Bag 2 $3W, 6B$}
        child {
                node[end, label=right:
                    {$P(B_1\cap W_2)=\frac{3}{7}\cdot\frac{3}{9}$}] {}
                edge from parent
                node[above] {$B$}
                node[below]  {$\frac{3}{9}$}
            }
            child {
                node[end, label=right:
                    {$P(B_1\cap B_2)=\frac{3}{7}\cdot\frac{6}{9}$}] {}
                edge from parent
                node[above] {$W$}
                node[below]  {$\frac{6}{9}$}
            }
        edge from parent
            node[above] {$B$}
            node[below]  {$\frac{3}{7}$}
    };
\end{tikzpicture}

\end{document}

Comments

  • #1 andrew, May 23, 2012 at 2:15 p.m.

    How can I insert arrows instead of dots at the end of the line? Thanks!

  • #2 Oliver, December 1, 2012 at 4:45 a.m.

    thanks, really useful

  • #3 Nicolas, March 2, 2013 at 10:47 p.m.

    Very helpful. Thanks! :)

  • #4 Thomas, March 3, 2013 at 6:38 p.m.

    Thank you!

  • #5 Nate, March 12, 2013 at 1:59 p.m.

    I think you inverted the first two probabilities
