Example: A Venn diagram with PDF blending

Published 2015-08-29 | Author: Stefan Kottwitz

PDF blend mode requires TikZ version 3.0 or above.

Download as: [PDF] [TEX]  •  [Open in Overleaf]

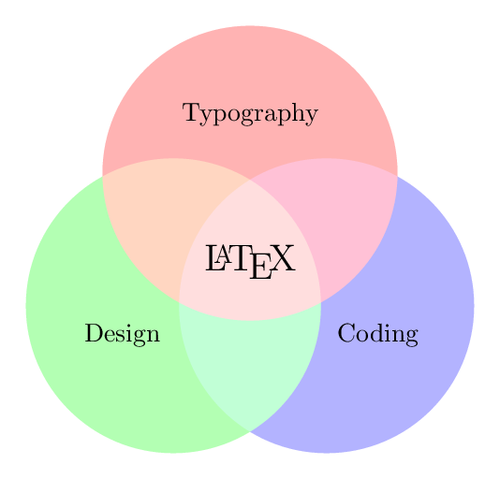

A Venn diagram with PDF blending

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de. En français: TeXnique.fr.

% A Venn diagram with PDF blending
% Author: Stefan Kottwitz
% https://www.packtpub.com/hardware-and-creative/latex-cookbook
\documentclass[border=10pt]{standalone}
\usepackage{tikz}
\begin{document}
\begin{tikzpicture}
  \begin{scope}[blend group = soft light]
    \fill[red!30!white]   ( 90:1.2) circle (2);
    \fill[green!30!white] (210:1.2) circle (2);
    \fill[blue!30!white]  (330:1.2) circle (2);
  \end{scope}
  \node at ( 90:2)    {Typography};
  \node at ( 210:2)   {Design};
  \node at ( 330:2)   {Coding};
  \node [font=\Large] {\LaTeX};
\end{tikzpicture}
\end{document}
