Example: Personality test

Published 2008-06-09 | Author: Rasmus Pank Roulund

In this example TikZ is used to produce the graphic output of a personality test developed by Prof. Poul Sveistrup.

Author:Rasmus Pank Roulund

Download as: [PDF] [TEX]  •  [Open in Overleaf]

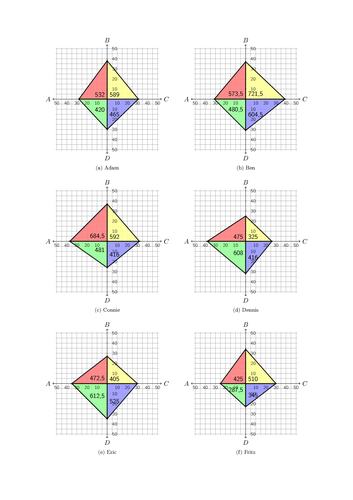

Personality test

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de. En français: TeXnique.fr.

% In this document Tikz is used to produce the graphic output of
% personality test by Sveistrup. More on the test (in Danish) here:
% http://www.socsci.auc.dk/samfbasis/kurser/projektarb/2006_7_farvetest.doc
% Author: Rasmus Pank Roulund

\documentclass[DIV=14]{scrartcl}
\pagestyle{empty}
\usepackage{tikz}
\usepackage{fltpoint}
\usepackage{subfig}
%Adding new counters
\newcounter{lenA}\newcounter{lenB}
\newcounter{lenC}\newcounter{lenD}

\newcommand{\svenstrup}[4]{
    \setcounter{lenA}{#1}%
    \setcounter{lenB}{#2}%
    \setcounter{lenC}{#3}%
    \setcounter{lenD}{#4}%
    \fpMul{\fourAB}{\thelenA}{\thelenB}%
    \fpDiv{\threeAB}{\fourAB}{2}%
    %
    \fpMul{\fourBC}{\thelenB}{\thelenC}%
    \fpDiv{\threeBC}{\fourBC}{2}%
    %
    \fpMul{\fourAD}{\thelenA}{\thelenD}%
    \fpDiv{\threeAD}{\fourAD}{2}%
    %
    \fpMul{\fourCD}{\thelenC}{\thelenD}%
    \fpDiv{\threeCD}{\fourCD}{2}%
    %
    \sffamily
    \begin{tikzpicture}[scale=.60]
        %Styles are defined.
        \tikzstyle{axes}=[]
        \tikzstyle{important line}=[very thick]

        %Let us lay the grounds.
        %grid
        \draw[style=help lines, step=0.5cm] (-5.1,-5.1) grid (5.1,5.1);


        %AXES

        %%We set the style for the follwing to be axes
        \begin{scope}[style=axes]
            \draw[->] (0,0) -- (-5.4,0) node[left]  {$A$} coordinate(x axis);
            \draw[->] (0,0) -- (5.4,0) node[right]  {$C$} coordinate(x axis);

            \draw[->] (0,0) -- (0,5.4)  node[above]  {$B$} coordinate(y axis);
            \draw[->] (0,0) -- (0,-5.4) node[below]  {$D$} coordinate(y axis);
        \end{scope}

        %We will make the important lines.
        %They will be filled, and they make out the basics of the figure
        \begin{scope}[style=important line,very nearly opaque, text opacity=100]

        %Add
        %Green

        \draw[fill=green!40!white, ] (-\thelenA mm, 0mm) --
        (0 mm,-\thelenD mm)
        --node[above left] {\threeAD} (0 mm, 0 mm) -- cycle ;

        %CD
        %Blue

        \draw[fill=blue!40!white] (\thelenC mm, 0mm) -- (0 mm,-\thelenD mm) --
            node[right] {\threeCD} (0 mm, 0 mm)  -- cycle;

        %BC
        %Yellow

        \draw[fill=yellow!40!white] (\thelenC mm, 0mm) -- (0 mm,\thelenB mm)
            --  (0 mm, 0 mm) node[above right] {\threeBC} -- cycle;

        %AB
        %Red

        \draw[fill=red!50!white] (-\thelenA mm, 0mm) -- (0 mm,\thelenB mm)
            -- (0 mm, 0 mm) node[above left] {\threeAB} -- cycle;

        \end{scope}



        \begin{scope}[style=axes, nearly opaque]
            %tiks on x-axis
            \foreach \x in {-5,-4,...,-.1}
                \draw (\x,.1pt) -- (\x,-.1pt) node[below]
                    {\fpAbs{\xpos}{\x}\scriptsize \xpos 0};

            \foreach \x in {5,4,...,.1}
                \draw[xshift=\x cm] (0,.1pt) -- (0,-.1pt) node[below]
                    {\fpAbs{\xpos}{\x}\scriptsize \xpos 0};

            %tiks på y-acis
            \foreach \y in {5,4,3,...,.1}
                \draw[yshift=\y cm] (-1.5pt,0pt) -- (1.5pt,0pt) node[right]
                    {\fpAbs{\ypos}{\y} \scriptsize \ypos 0};

            \foreach \y in {-5,-4,...,-.1}
                \draw[yshift=\y cm] (-1.5pt,0pt) -- (1.5pt,0pt) node[right]
                    {\fpAbs{\ypos}{\y} \scriptsize \ypos 0};

        \end{scope}

        \normalfont
    \end{tikzpicture}
}

\begin{document}
\begin{figure}
    \centering
    \subfloat[Adam]{\svenstrup{28}{38}{31}{30}}
    \quad
    \subfloat[Ben]{\svenstrup{31}{37}{39}{31}}\\
    \subfloat[Connie]{\svenstrup{37}{37}{32}{26}}
    \quad
    \subfloat[Dennis]{\svenstrup{38}{25}{26}{32}}\\
    \subfloat[Eric]{\svenstrup{35}{27}{30}{35}}
    \quad
    \subfloat[Fritz]{\svenstrup{25}{34}{30}{23}}
\end{figure}
\end{document}

%%% Local Variables:
%%% mode: latex
%%% TeX-master: t
%%% End:
