Example: LR constraints - Drawing and filling with arcs and Bezier curves

Published 2014-03-09 | Author: Henri Menke

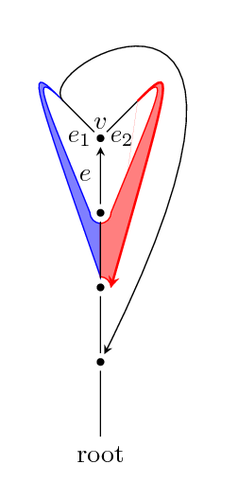

We use TikZ to reproduce a diagram seen in an article “The Left-Right Planarity Test” by Ulrik Brandes.

At first we adjust the bounding box by hand, because the control points of the Bezier curves exceed the limits of the visible drawing.

The code was written by Henri Menke and published on TeX.SE.

Download as: [PDF] [TEX]  •  [Open in Overleaf]

LR constraints - Drawing and filling with arcs and Bezier curves

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de. En français: TeXnique.fr.

% LR constraints - Drawing and filling with arcs and Bezier curves
% Author: Henri Menke
\documentclass[tikz, border=10pt]{standalone}
\usetikzlibrary{calc}
\tikzset{
    vertex/.style = {
        circle,
        fill      = black,
        outer sep = 2pt,
        inner sep = 1pt,
    }
}
\begin{document}
\begin{tikzpicture}[>=stealth]
  % We need to adjust the bounding box manually
  % as the control points enlarge it.
  \path[use as bounding box] (-1,-0.5) rectangle (1.5,5.5);

  \coordinate (o) at (0,0);
  \node[below] at (o) {root};
  \draw node[vertex] (a) at (0,1) {};
  \draw node[vertex] (b) at (0,2) {};
  \draw node[vertex] (c) at (0,3) {};
  \draw node[vertex] (d) at (0,4) {};
  \node[above] at (d) {$v$};

  \draw (d) node[left] {$e_1$} -- (-0.5,4.5);
  \filldraw[draw=blue, fill=blue!50]
    (-0.5,4.5) .. controls (-1,5) and (-0.75,4.5) .. ($(c)+(180:4pt)$)
    arc[start angle=180, end angle=270, radius=4pt]
    -- ($(b)+(90:4pt)$) .. controls (-1,5) .. (-0.5,4.5);
  \draw (d) node[right] {$e_2$} -- (0.5,4.5);
  \filldraw[draw=red, fill=red!50]
    (0.5,4.5) .. controls (1,5) and (0.75,4.5) .. ($(c)+(0:4pt)$)
    arc[start angle=0, end angle=-90, radius=4pt]
    -- ($(b)+(90:4pt)$) arc[start angle=90, end angle=0, radius=4pt]
    ($(b)+(0:4pt)$) .. controls (1,5) .. (0.5,4.5);
  \draw[red, thick, ->] (0.5,4.5) .. controls (1,5) .. ($(b)+(0:4pt)$);
  \draw[->] (-0.5,4.5) .. controls (-1,5) and (3,7) .. (a);

  \draw[->] (o) -- (a) (a) -- (b) (b) -- (c) (c) -- node[left] {$e$} (d);
\end{tikzpicture}
\end{document}
