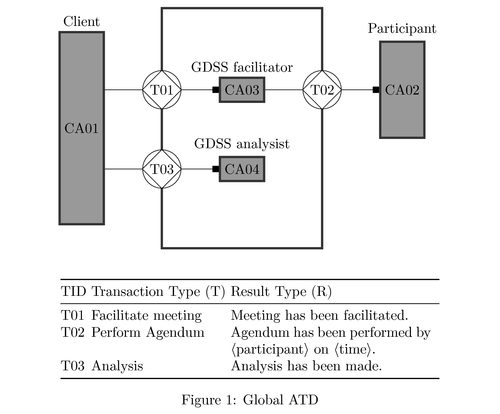

Example: Actor Transaction Diagram

Published 2008-10-31 | Author: Gabor Tjong A Hung

A sample of a global Actor Transaction Diagram or ATD of the Design & Engineering Methodology for Organizations (DEMO) methodology. The most interesting part of the example is the definition of the custom square arrow the and diamond in circle node shape.

Note: The square arrow is now available in the CVS version of PGF. In the example the arrow shape has been renamed to squarea to avoid conflict.

Download as: [PDF] [TEX]  •  [Open in Overleaf]

Actor Transaction Diagram

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de. En français: TeXnique.fr.

%
%  Actor Transaction Diagram
%
%  Created by Gabor Tjong A Hung on 2008-10-28.
%  Copyright (c) 2008. All rights reserved.
%
\documentclass[]{article}
\usepackage{booktabs}
\usepackage{tikz}

\usetikzlibrary{arrows,positioning,fit,shapes,calc}

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% A square shaped arrow
% The arrow has been renamed to squarea to avoid conflict with the square arrow
% defined in the CVS version of PGF

\newdimen\arrowsize
\pgfarrowsdeclare{squarea}{squarea}
{
  \arrowsize=0.4pt
  \advance\arrowsize by.275\pgflinewidth%
  \pgfarrowsleftextend{+-\arrowsize}
  \advance\arrowsize by.5\pgflinewidth
  \pgfarrowsrightextend{+\arrowsize}
}
{
  \arrowsize=0.4pt
  \advance\arrowsize by.275\pgflinewidth%
  \pgfsetdash{}{+0pt}
  \pgfsetroundjoin
  \pgfpathmoveto{\pgfqpoint{1\arrowsize}{4\arrowsize}}
  \pgfpathlineto{\pgfqpoint{-7\arrowsize}{4\arrowsize}}
  \pgfpathlineto{\pgfqpoint{-7\arrowsize}{-4\arrowsize}}
  \pgfpathlineto{\pgfqpoint{1\arrowsize}{-4\arrowsize}}
  \pgfpathclose
  \pgfusepathqfillstroke
}
% A open square shaped arrow

\pgfarrowsdeclare{open squarea}{open squarea}%{{-.5bp}{8.5bp}}
{
  \arrowsize=0.4pt
  \advance\arrowsize by.275\pgflinewidth%
  \pgfarrowsleftextend{+-.5\pgflinewidth}
  \advance\arrowsize by7\arrowsize
  \advance\arrowsize by.5\pgflinewidth
  \pgfarrowsrightextend{+\arrowsize}
}
{
  \arrowsize=0.4pt
  \advance\arrowsize by.275\pgflinewidth%
  \pgfsetdash{}{+0pt}
  \pgfsetroundjoin
  \pgfpathmoveto{\pgfqpoint{8\arrowsize}{4\arrowsize}}
  \pgfpathlineto{\pgfqpoint{0\arrowsize}{4\arrowsize}}
  \pgfpathlineto{\pgfqpoint{0\arrowsize}{-4\arrowsize}}
  \pgfpathlineto{\pgfqpoint{8\arrowsize}{-4\arrowsize}}
  \pgfpathclose
  \pgfusepathqstroke
}

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% A circle and diamond shape
\makeatletter
\newdimen\tempa
\newdimen\tempb
\pgfdeclareshape{diamond in circle}{
\inheritsavedanchors[from=diamond] % this is a diamond
\inheritsavedanchors[from=circle] % this is a circle
\inheritanchorborder[from=circle]
\inheritanchor[from=circle]{center}
\inheritanchor[from=circle]{radius}
\inheritanchor[from=circle]{north}
\inheritanchor[from=circle]{south}
\inheritanchor[from=circle]{east}
\inheritanchor[from=circle]{west}
\inheritanchor[from=circle]{anchorborder}
  \saveddimen\radius{%
    %
    % Caculate ``height radius''
    %
    \pgf@ya=.5\ht\pgfnodeparttextbox%
    \advance\pgf@ya by.5\dp\pgfnodeparttextbox%
    \pgfmathsetlength\pgf@yb{\pgfkeysvalueof{/pgf/inner ysep}}%
    \advance\pgf@ya by\pgf@yb%
    %
    % Caculate ``width radius''
    %
    \pgf@xa=.5\wd\pgfnodeparttextbox%
    \pgfmathsetlength\pgf@xb{\pgfkeysvalueof{/pgf/inner xsep}}%
    \advance\pgf@xa by\pgf@xb%
    %
    % Calculate length of radius vector:
    %
    \pgf@process{\pgfpointnormalised{\pgfqpoint{\pgf@xa}{\pgf@ya}}}%
    \ifdim\pgf@x>\pgf@y%
        \c@pgf@counta=\pgf@x%
        \ifnum\c@pgf@counta=0\relax%
        \else%
          \divide\c@pgf@counta by 255\relax%
          \pgf@xa=16\pgf@xa\relax%
          \divide\pgf@xa by\c@pgf@counta%
          \pgf@xa=16\pgf@xa\relax%
        \fi%
      \else%
        \c@pgf@counta=\pgf@y%
        \ifnum\c@pgf@counta=0\relax%
        \else%
          \divide\c@pgf@counta by 255\relax%
          \pgf@ya=16\pgf@ya\relax%
          \divide\pgf@ya by\c@pgf@counta%
          \pgf@xa=16\pgf@ya\relax%
        \fi%
    \fi%
    \pgf@x=\pgf@xa%
    %
    % If necessary, adjust radius so that the size requirements are
    % met:
    %
    \pgfmathsetlength{\pgf@xb}{\pgfkeysvalueof{/pgf/minimum width}}%
    \pgfmathsetlength{\pgf@yb}{\pgfkeysvalueof{/pgf/minimum height}}%
    \ifdim\pgf@x<.5\pgf@xb%
        \pgf@x=.5\pgf@xb%
    \fi%
    \ifdim\pgf@x<.5\pgf@yb%
        \pgf@x=.5\pgf@yb%
    \fi%
    %
    % Now, add larger of outer sepearations.
    %
    \pgfmathsetlength{\pgf@xb}{\pgfkeysvalueof{/pgf/outer xsep}}%
    \pgfmathsetlength{\pgf@yb}{\pgfkeysvalueof{/pgf/outer ysep}}%
    \ifdim\pgf@xb<\pgf@yb%
      \advance\pgf@x by\pgf@yb%
    \else%
      \advance\pgf@x by\pgf@xb%
    \fi%
  }
\backgroundpath{
    \tempa=\radius
    \pgfmathsetlength{\pgf@xb}{\pgfkeysvalueof{/pgf/outer xsep}}%
    \pgfmathsetlength{\pgf@yb}{\pgfkeysvalueof{/pgf/outer ysep}}%
    \ifdim\pgf@xb<\pgf@yb%
      \advance\tempa by-\pgf@yb%
    \else%
      \advance\tempa by-\pgf@xb%
    \fi%
    \pgfpathmoveto{\centerpoint\advance\pgf@x by\radius}%
    \pgfpathlineto{\centerpoint\advance\pgf@y by\radius}%
    \pgfpathlineto{\centerpoint\advance\pgf@x by-\radius}%
    \pgfpathlineto{\centerpoint\advance\pgf@y by-\radius}%
    \pgfpathclose%
  }
\behindbackgroundpath{
    \tempa=\radius%
    \pgfmathsetlength{\pgf@xb}{\pgfkeysvalueof{/pgf/outer xsep}}%
    \pgfmathsetlength{\pgf@yb}{\pgfkeysvalueof{/pgf/outer ysep}}%
    \ifdim\pgf@xb<\pgf@yb%
      \advance\tempa by-\pgf@yb%
    \else%
      \advance\tempa by-\pgf@xb%
    \fi%
    \pgfpathcircle{\centerpoint}{\tempa}%
  }
}
\makeatother


\newcommand{\parameter}[1]{$\langle\mbox{#1}\rangle$}
\title{A LaTeX Article}
\author{Gabor Tjong A Hung}

\begin{document}

\tikzset{
every transaction/.style = {fill=white!100},
transaction/.style = {diamond in circle, draw, minimum size=6mm, every transaction},
every actor role/.style = {},
actor role/.style = {rectangle, draw=black!80, ultra thick,
    minimum size = 6mm, every actor role},
composite actor role/.style = {fill=gray!80, actor role},
elementary actor role/.style = {fill=white!100, actor role},
initiator/.style = {-},
executor/.style = {<-, >=squarea},
system/.style = {rectangle, fill=white!100, ultra thick, draw=black!80,
            minimum height=60mm, minimum width=4cm,outer sep=0pt}}


\begin{figure}[h]
\centering
\pgfdeclarelayer{background}
\pgfdeclarelayer{foreground}
\pgfsetlayers{background,main,foreground}
\begin{tikzpicture}[node distance=1cm, on grid]
    \begin{pgfonlayer}{background}
        \node [system] (system) at (0,3){};
    \end{pgfonlayer}
    \node [composite actor role] (CA01) [minimum height=48mm] at ( -4,3) {CA01};
    \node [above] at (CA01.north) {Client};
    \node [transaction] (T01) at( $(system.south west)!.66!(system.north west)$)
        {T01} edge [initiator] (CA01.south east |- T01);
    \node [composite actor role] (CA03) at ( $(system.south)!.66!(system.north)$)
        {CA03} edge [executor] (T01);
    \node [above] at (CA03.north) {GDSS facilitator};
    \node [transaction] (T02) at ( $(system.south east)!.66!(system.north east)$)
        {T02} edge  [initiator] (CA03);
    \path (T02)++(2,0) node [composite actor role] (CA02) [minimum height=24mm]
        {CA02} edge  [executor] (T02);
    \node [above] at (CA02.north) {Participant};
    \node [transaction] (T03) at ( $(system.south west)!.33!(system.north west)$)
        {T03} edge  [initiator] (CA01.south east |- T03);
    \node [composite actor role] (CA04) at ( $(system.south)!.33!(system.north)$)
        {CA04} edge  [executor] (T03);
    \node [above] at (CA04.north) {GDSS analysist};
\end{tikzpicture}
\\[2em]
    \begin{tabular}{@{T}l@{ }l@{ }p{5cm}}
        \toprule
        ID & Transaction Type (T) & Result Type (R)\\
        \midrule
        01 & Facilitate meeting &  Meeting has been facilitated.\\
        02 & Perform Agendum &  Agendum has been performed by \parameter{participant}
         on \parameter{time}.\\
        03 & Analysis &  Analysis has been made.\\
        \bottomrule
    \end{tabular}\label{tab:trt_datd}
    \caption{Global ATD}
\end{figure}

\end{document}
